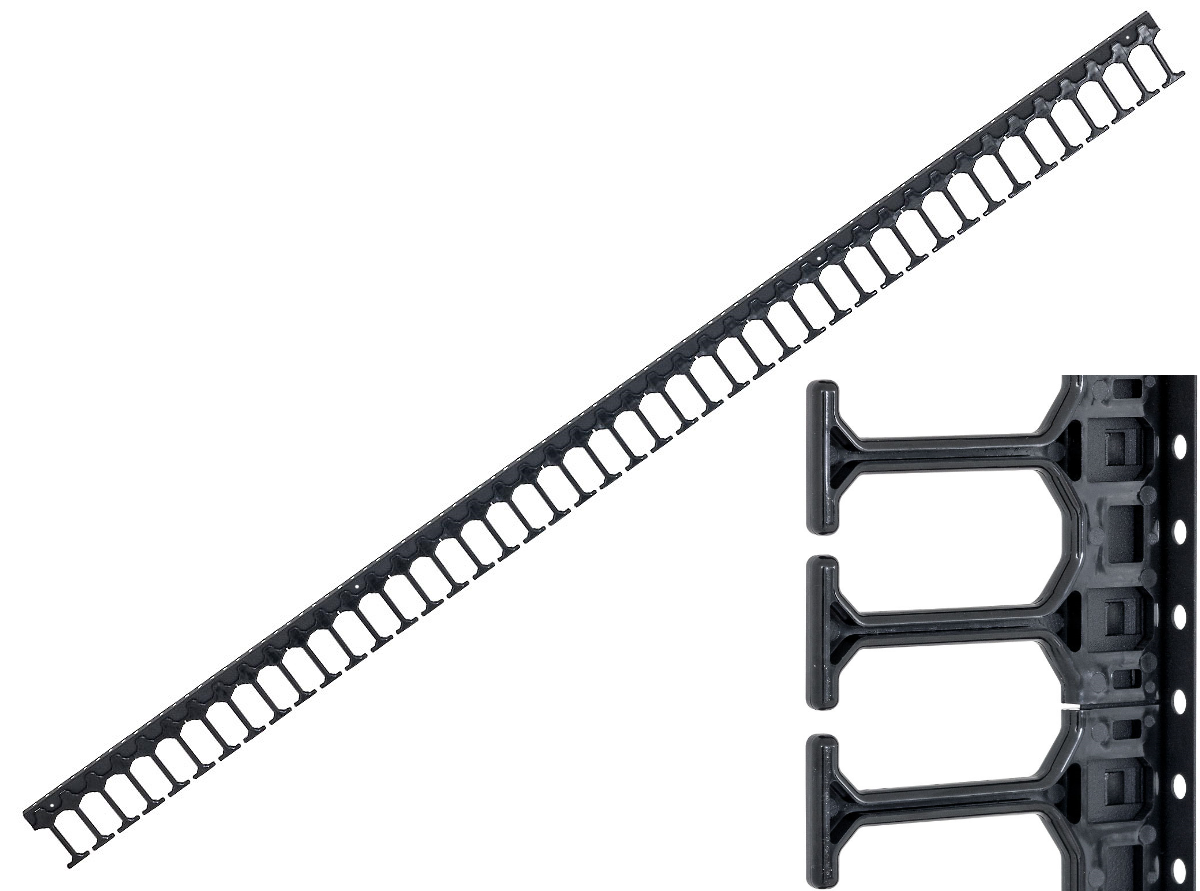

Produktnummer: CABLE MAN VERT SINGLE E-SERIES

EDAV1xx2-Series

Vertical Cable Management Single finger strip for E-Series.

  • Verfügbarkeit:
    EMEA
  • Status:
    Aktiv
CABLE MAN VERT SINGLE E-SERIES
  • CABLE MAN VERT SINGLE E-SERIES
1 von 1

Technische Daten

Expand All

Environmental Space

Indoor

Overall Width

20 mm

Depth

105 mm

Material

Metal and plastic moulded fingers on one side

Color

Black

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Included Parts

cable manager and bolts for installation

Packaging

Individually packaged

Update and Revision

Revision Number: 0.168 Revision Date: 08-05-2025

Included Parts

cable manager and bolts for installation

Packaging

Individually packaged

Update and Revision

Revision Number: 0.168 Revision Date: 08-05-2025


Report An Error

Artikelnummer

Part # Height Depth EDC / ESN / ESH Application Min. cabinet size
EDAV1152 531 mm 105 mm 15U
EDAV1182 620 mm 105 mm 18U
EDAV1222 884 mm 105 mm 22U
EDAV1272 1062 mm 105 mm 27U
EDAV1322 1240 mm 105 mm 32U
EDAV1372 1504 mm 105 mm 37U
EDAV1422 1681 mm 105 mm 42U
EDAV1452 1858 mm 105 mm 45U
EDAV1472 1954 mm 105 mm 47U
