Product Number: DEIP182U

Indoor Digital Electricity Copper Cable, #18-2pr, TC, LS-PVC, CL4P, CMP, LS-PVC Jkt

Indoor Digital Electricity Copper Cable, 2-18 AWG Stranded (7x26) Tinned Copper Pairs with Flamarrest® insulation, Plenum-CL4P, CMP, Flamarrest® Jacket with Ripcord

  • Availability:
    Global
  • Status:
    Active

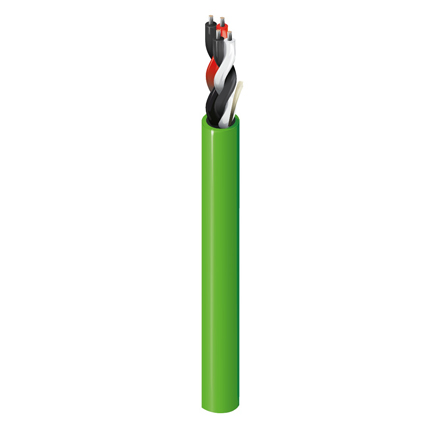

DEIP182U
  • DEIP182U
1 of 1

Technische Daten

Expand All

Suitable Applications

Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, indoor

Conductor

Size Stranding Material
18 7x26 TC - Tinned Copper

Insulation

Material Nom. Thickness Color Code
PVC - Polyvinyl Chloride 0.009 in (0.23 mm) Black & Red, Black & White

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.264 in (6.71 mm)

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
6.4 Ohm/1000ft 30 pF/ft (98 pF/m) 6.4 Amps per Conductor at 25ºC (35°C Temperature Rise)

Voltage

UL Voltage Rating
450 V RMS

Temperature

UL Temperature Operating
75°C 0°C To +75°C

Max. Pull Tension

99 lbs (45 kg)

Bulk Cable Weight

37 lbs/1000ft

Environmental Suitability

Indoor

Flammability / Reaction to Fire

NFPA 262, FT6

NEC / UL Compliance

Article 800, CL4P-FMP (2.0A), CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2019-05-14

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.75 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.75 Revision Date: 09-07-2025


Report An Error

Artikelnummer

Item # Color Length
DEIP182U Apple Green 2,000 ft
