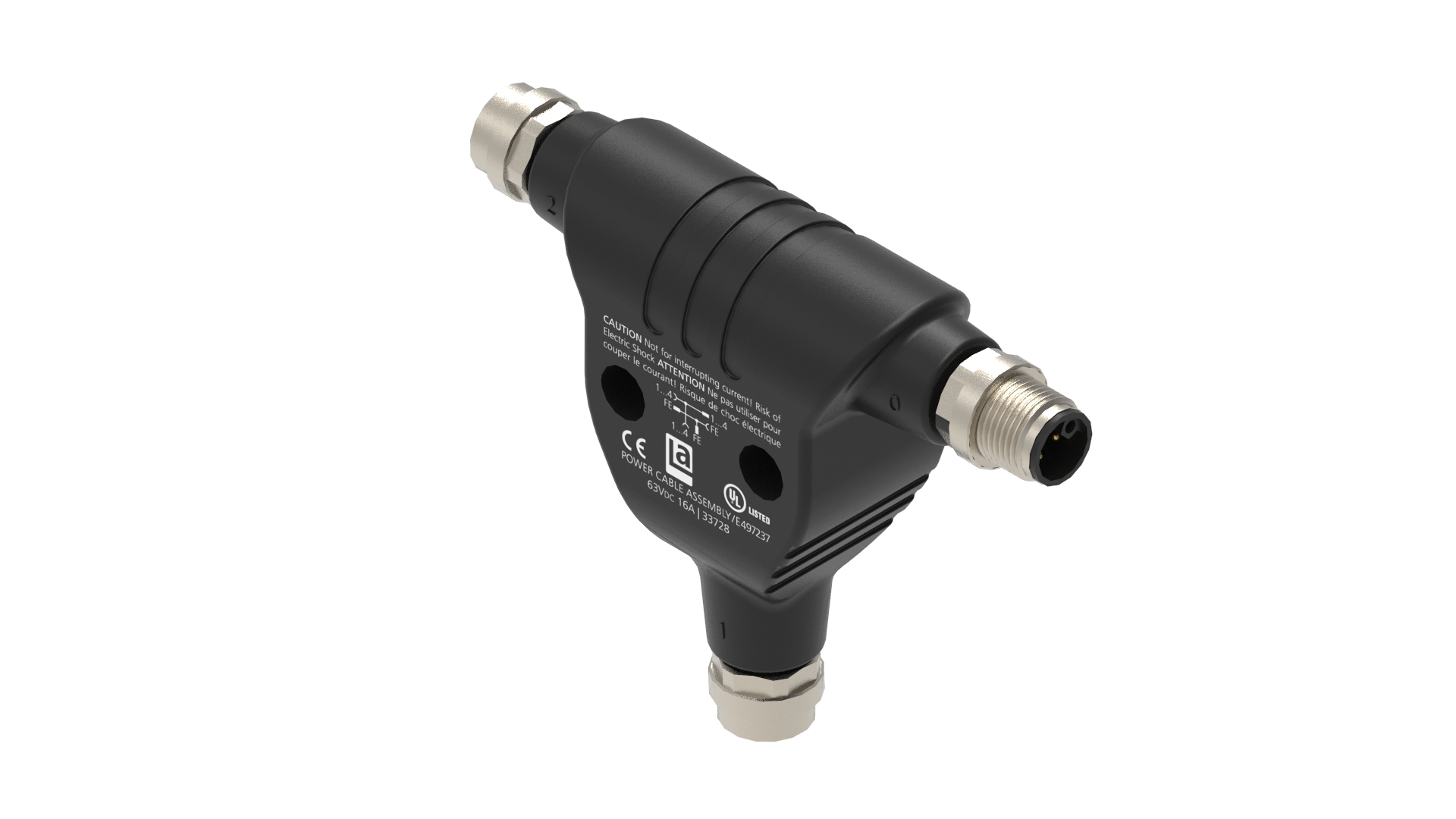

M12 Power T-splitter: male, straight, 4+FE, L-coded, M12, female, straight, 4+FE, L-coded, M12, female, straight, 4+FE, L-coded

Technische Daten

Side 1 Product Sub Family	M12 Power
Side 1 Type of Contact/Gender	male, M12
Connector Design	T shape
Attachment Type	Coupling Nut
Number of Pins	4+FE
Coding, Side 1	L
Insulation Resistance	≥10^8 Ohm
Mating Cycles	100
Ambient Temperature (Operation)*	-30°C to +90°C, notice derating
Design Standard	IEC 61076-2-111
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	black
Molded Body Material	TPU
Molded Body Color	black
Attachment Material	CuZn
Attachment Plating	Cu/Ni
O-Ring Material	FPM/FKM

Ambient Temperature (Fixed Installation)	-30°C to +90°C

Side 2 Product Sub Family	M12 Power
Side 2 Type of Contact/Gender	female, M12
Number of Pins, Side 2	4+FE
Coding, Side 2	L
Contact Base Material, Side 2	CuZn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	PA
Contact Bearer Color, Side 2	black
Attachment Material, Side 2	CuZn

Coding, Side 3	L
Contact Base Material, Side 3	CuZn
Contact Bearer Color, Side 3	black
Contact Bearer Material, Side 3	PA
Contact Plating, Side 3	Cu/Au
Number of Pins, Side 3	4+FE
Protection Degree / IP Rating (IEC 60529), Side 3	IP65, IP67, IP68
Rated Current*, Side 3	16 A
Rated Voltage, Side 3	63 VDC
Type of Contact / Gender, Side 3	female, M12

Product Sub Family, Side 4	M12 Power
Protection Degree / IP Rating (IEC 60529), Side 4	IP65, IP67, IP68
Rated Current*, Side 4	16 A

UL-File	E497237
UL	cULus

RoHS Compliant	yes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	* Notice derating

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	* Notice derating
