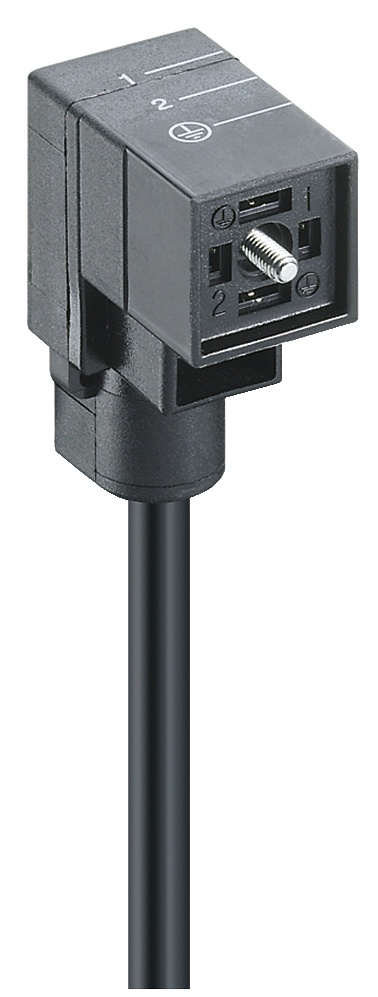

VCD DIN Standard Single-Ended Cordset: Form C, 4-pin (2+2PE), black body, without circuitry, 230 V AC/DC, 4 A; PUR black cable, 0.50 mm²

Technische Daten

Face View

Pin 1	Pin 2	PE1	PE2
brown	blue	green-yellow	green-yellow

Product Family	Valve Connectors
Side 1 Product Sub Family	VCD DIN Standard
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	2+2PE
Coding, Side 1	C
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	250 V AC/DC
Operating Voltage	230 V AC/DC
Current Rating	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Ambient Temperature (Operation)*	-25 °C - +80 °C
Protection Degree / IP Rating**	IP65
Design Standard	DIN EN 175301-803-C, ISO 4400
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	TPE
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot
Gasket Material	Molded Integrated Gasket

Protection Circuitry	No Circuitry
Fastening Torque (Attachment)	(40-50) Ncm

Cable Number	226
Conductor Size	0.5 mm²
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black
Cable Diameter D	ø 4.6 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.50 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 105 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 25 °C - + 105 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances

RoHS Compliant	yes

Halogenfree	yes
Oil Resistance	Good chemical and oil resistance

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
