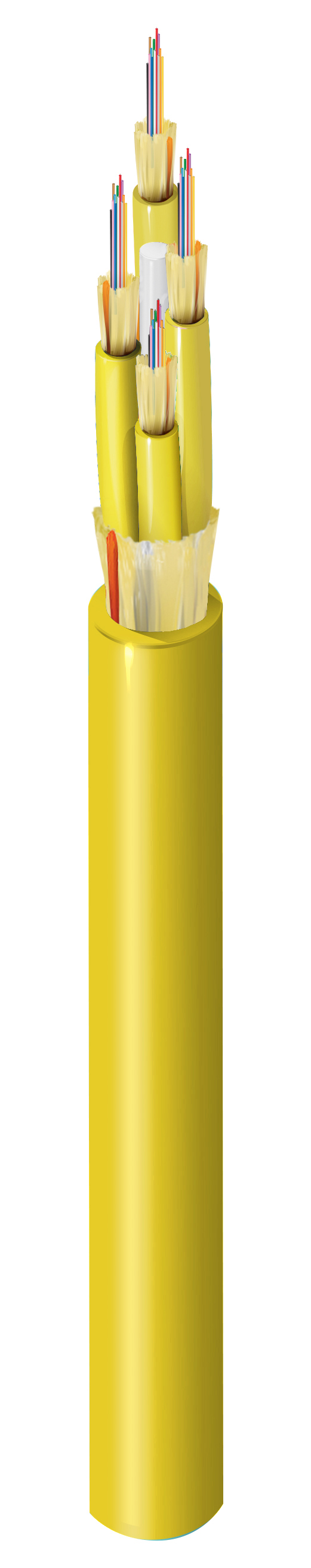

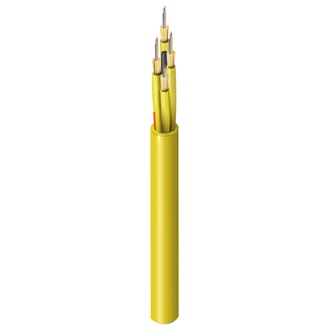

Product Number: FISM048P1

Indoor Mini-Distribution OS2 48 Fibers OFNP Sub-Units 2.0 mm (12F)

FX Indoor, Mini-Distribution, OS2, 48 Fibers, OFNP, Sub-Units 2.0 mm (12F), Yellow Jacket

  • Availability:
    Global
  • Status:
    Active
FISM048P1
  • FISM048P1
1 of 1

Technische Daten

Expand All

Product Category

Fiber Mini Distribution Cable

Suitable Applications

Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Fiber Type

OS2, G.657.A1, G.652.D

Fiber Core Diameter

8.2/125 µm

Fiber Diameter

250 µm

Fiber Count

48

Fiber Color Coding

TIA-598-D

Number of Active Subunits

4

Fibers Per Subunit

12

Subunit Diameter

0.078 in (2.0 mm)

Subunit Color

Yellow

Fiber SubUnit Strength Members

Aramid yarns

Central Strength Member Type

GRP

Strength Member

Aramid Yarns

Jacket Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.272 in (6.9 mm)

Outer Jacket Color

Yellow

Outer Jacket Ripcord

1

Optical Characteristics

Wavelength 1310 nm 1550 nm
Max. Attenuation 0.5 dB/km 0.50 dB/km
10 Gigabit Ethernet Performance 10,000 m 50,000 m

Minimum Bend Radius During Installation

15x Cable OD

Minimum Bend Radius During Operation

10x Cable OD

Max. Tensile Strength During Installation

660 N (150 lbf)

Max. Tensile Strength During Operation

200 N (45 lbf)

Crush Resistance

100 N/cm

Bulk Cable Weight

32 lbs/kft (46 kg/km)

Installation Temperature Range

0°C to +60°C

Operating Temperature Range

0°C to +70°C

Storage Temperature Range

-40°C to +70°C

Environmental Suitability

Indoor

Flammability / Reaction to Fire

NFPA 262, FT6

NEC / UL Compliance

OFNP

CEC / C(UL) Compliance

OFNP

ICEA Compliance

S-83-596

TIA/EIA Compliance

598-D

Telcordia Compliance

GR-409

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment)

Update and Revision

Revision Number: 0.87 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.87 Revision Date: 09-07-2025


Report An Error

Artikelnummer

Item # Color Putup Type UPC
FISM048P1 Yellow Reel 612825287094
