Produktnummer: 8760MN

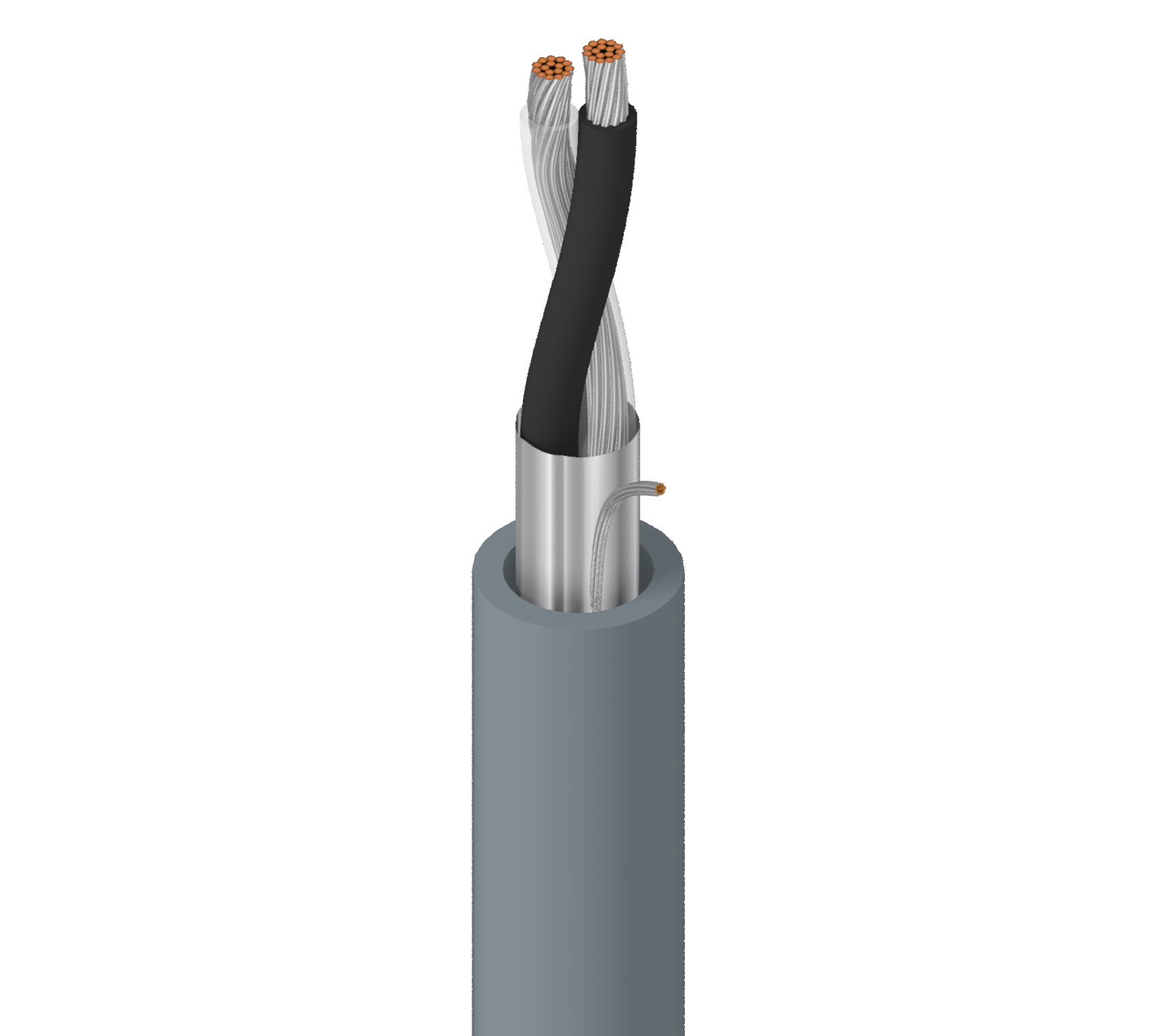

SpaceMaker™, 2 C #18 Str TC, PE Ins, OS, PVC Jkt, AWM 2937

SpaceMaker™, 2 Conductor 18AWG (41x34) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

  • Verfügbarkeit:
    Global
  • Status:
    Aktiv
8760MN
  • 8760MN
1 von 1

Technische Daten

Expand All

Suitable Applications

Connect machines and devices in space constrained settings,low voltage analog signals (4-20ma, 0-10v, ...),low voltage digital control (24v, …),ine level audio,computer communication,panel wiring

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 18 AWG 41x34 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP - Polypropylene 0.010 in (0.25 mm) 0.067 in (1.7 mm) Black & White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (19x32) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.016 in (0.41 mm) 0.169 in (4.29 mm)

Overall Cable Diameter (Nominal)

0.169 in (4.29 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Inductance Max. Current
Pair(s) 7.06 Ohm/1000ft 76.9 pF/ft (252 pF/m) 40.6 pF/ft (133 pF/m) 0.170 µH/ft (0.558 µH/m) 14 Amps per Conductor at 30ºC

Nom Outer Shield DCR@Cond DCR1-cnv

8.18 Ohm/1000ft (26.8 Ohm/km)

Voltage

UL Voltage Rating
300 V (UL AWM 2937)

Temperature

UL Temperature Operating
80°C -30°C to +80°C

Bend Radius

Stationary Min. Installation Min.
2.0 in (51 mm) 2.0 in (51 mm)

Max. Pull Tension

56 lbs (25 kg)

Bulk Cable Weight

20 lbs/1000ft

Environmental Suitability

Indoor

Flammability / Reaction to Fire

FT2

AWM Compliance

AWM 2937

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision

Revision Number: 0.334 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.334 Revision Date: 09-07-2025


Report An Error

Artikelnummer

Item # Color Putup Type Length UPC
8760MN 006100 Blue, Light Reel 100 ft 612825385837
8760MN 0061000 Blue, Light Reel 1,000 ft 612825385844
8760MN 008100 Gray Reel 100 ft 612825385851
8760MN 0081000 Gray Reel 1,000 ft 612825382652
8760MN 004100 Yellow Reel 100 ft 612825385813
8760MN 0041000 Yellow Reel 1,000 ft 612825385820
