Produktnummer: MRTA6P23U

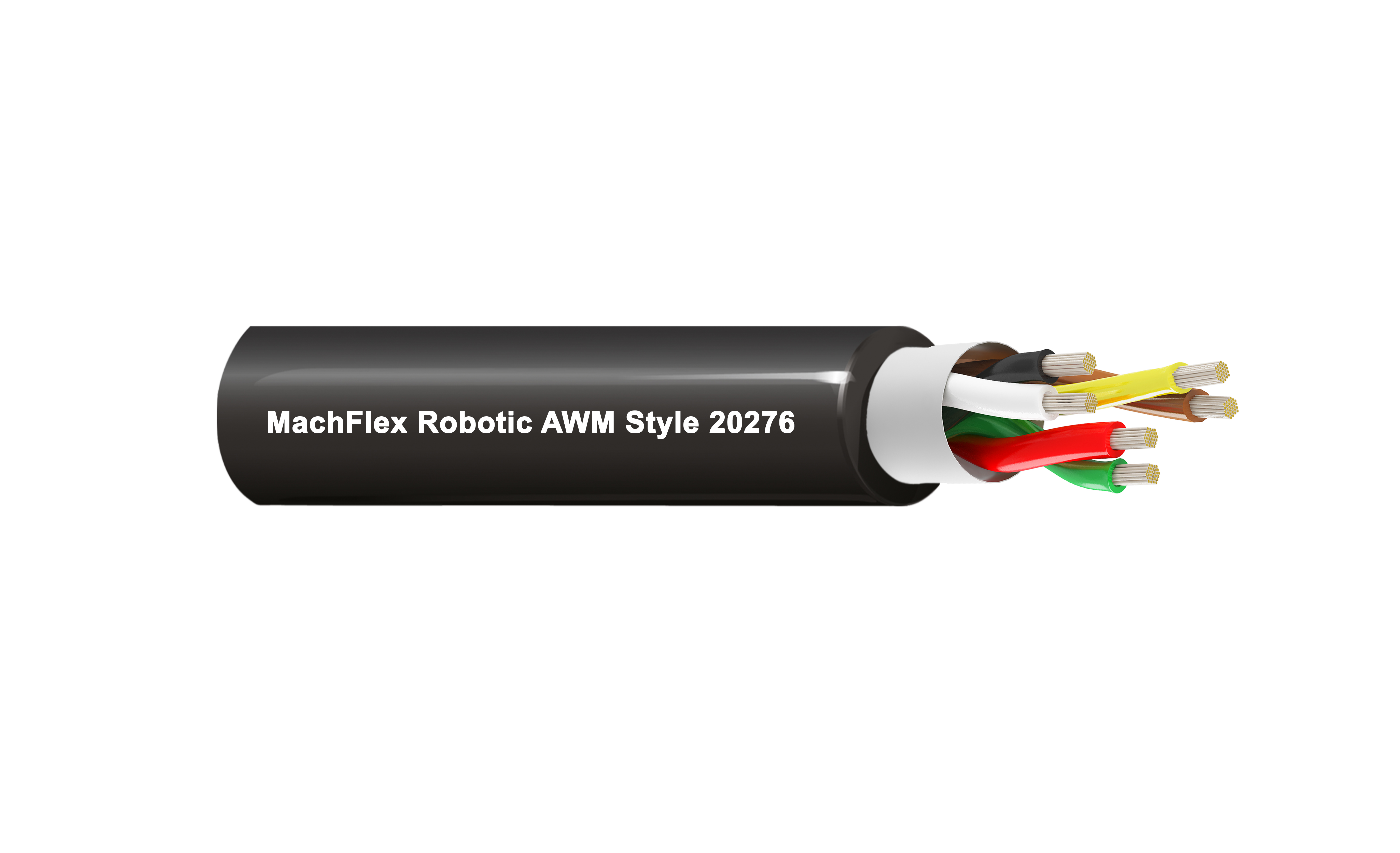

MachFlex™ Robotic mehrpaarige Steuerung, 6 Pr 23 AWG Str TC, ETFE-Isolierung, PVC-Außenummantelung

MachFlex™ Roboter-Mehrpaarsteuerung & Signalkabel, 6-paarig, 23 AWG, verzinntes Kupferlitzenkabel, ETFE-Isolierung, PVC-Außenmantel

  • Verfügbarkeit:
    EMEA | Asia Pacific
  • Status:
    Aktiv
MRTA6P23U
5 von 5

Technische Daten

Expand All

Suitable Applications

MachFlex Robotic AWM 20276, Multi-Pair Cables are meeting the high demands of the robotic industry on the cabling of continuous moving machinery and the corresponding robotic components. These cables are specially designed for high mechanical requirements, they can withstand highly dynamic bending and torsional movements, and can be used in crucial industrial environments

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 6 23 AWG Stranded TC - Tinned Copper

Insulation

Material Color Code
ETFE - Ethylene Tetrafluoroethylene 1. Black&Brown, 2. Black&Red, 3. Black&Orange, 4. Black&Yellow, 5. Black&Green, 6. Black&Blue

Outer Jacket

Material
PVC - Polyvinyl Chloride

Overall Cable Diameter (Nominal)

5.7 mm (0.22 in)

Electricals

Max. Conductor DCR
74.5 Ohm/km

Voltage

UL Voltage Rating
30 V (Max. Operating Voltage)

Temperature

Operating
-30°C to +80°C

Bend Radius Table Notes

±90º Bending: Min. 8 million cycles (Speed: 60 cycles/min.; Bending radius: 7.5D); Drag Chain: Min. 25 million cycles (Traversing distance: 350mm; Speed: 70 cycles/min; Bending radius: 6D); Vertical Torsion Test +/-180⁰/m: Min. 8 million cycles; Horizontal Torsion Test +/-90⁰/m: Min. 8 million cycles.

Bulk Cable Weight

62.2 kg/km (41.8 lbs/1000ft)

Environmental Suitability

IndoorOutdoor, Indoor, Outdoor, Oil Resistance

Flammability / Reaction to Fire

FT1, VW-1, IEC 60332-1-2

AWM Compliance

AWM 20276

CEC / C(UL) Compliance

CSA C22.2 No.210

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Suitability -Oil Resistant : IRM 902 120℃x18hrs, IRM 903 120℃x18hrs

Update and Revision

Revision Number: 0.41 Revision Date: 02-03-2026

Update and Revision

Revision Number: 0.41 Revision Date: 02-03-2026


Report An Error

Artikelnummer

Artikelnr. Farbe Länge
MRTA6P23U G8U100M Grau 100 m
MRTA6P23U G8U200M Grau 200 m
MRTA6P23U G8U300M Grau 300 m
MRTA6P23U 003100M Orange 100 m
MRTA6P23U 003200M Orange 200 m
MRTA6P23U 003300M Orange 300 m
