Produktnummer: 7933A

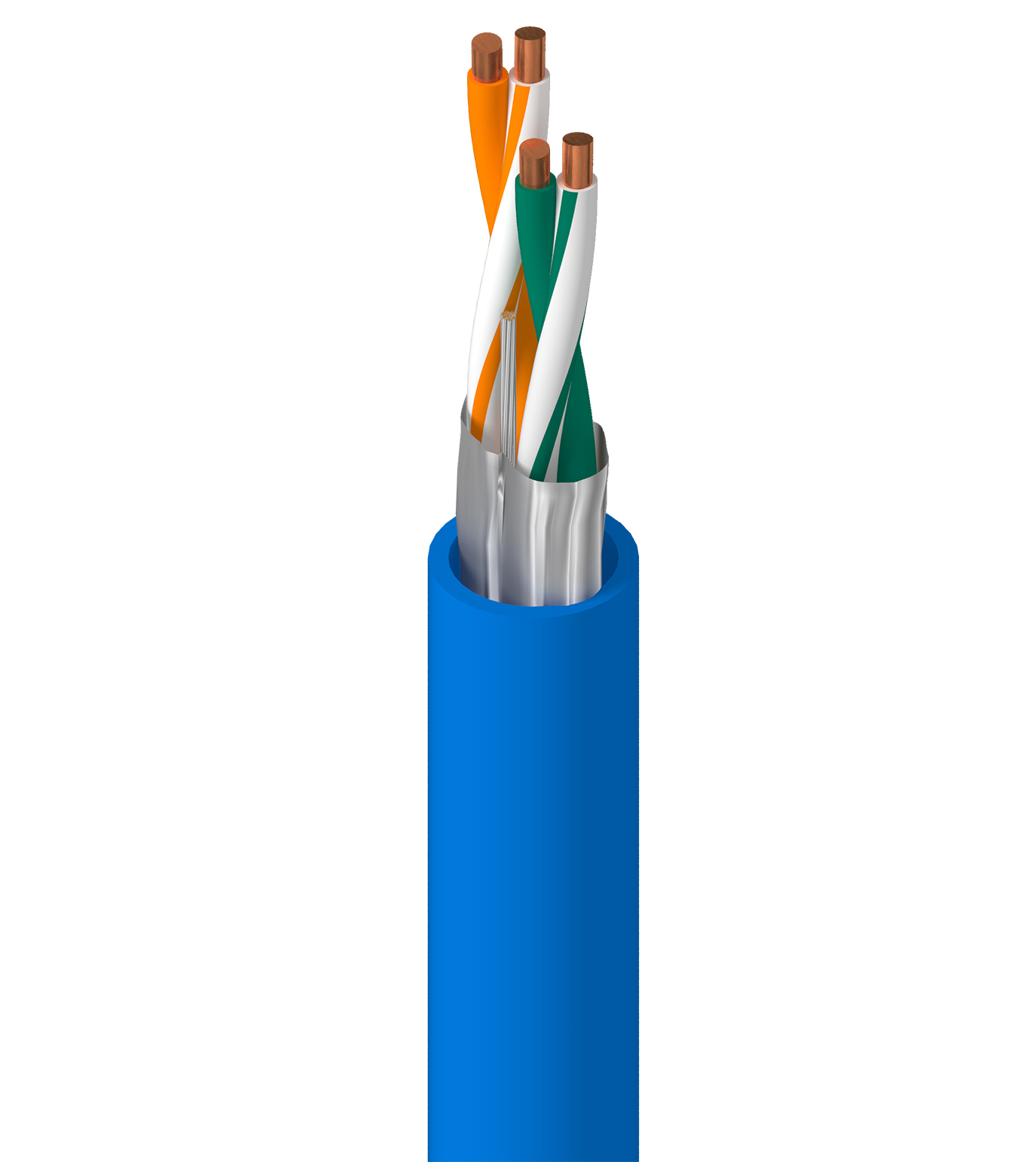

DataTuff® Cat 5e, 2 Bonded-Pr #24 Sol BC, PO Ins, OS, PVC Jkt, CMR SUN RES OIL RES

Industrielles Ethernet Cat 5e, 2 Bonded-Pair 24AWG (massiv) blankes Kupfer, PO-Isolierung, Beldfoil®-Gesamtabschirmung, PVC-Außenmantel, CMR SUN RES OIL RES

  • Verfügbarkeit:
    Global
  • Status:
    Aktiv

Technische Daten

Mögliche Anwendungen

Raue Umgebungen, IIoT, Fabrik- oder Prozessautomatisierung, IP-Kameras und -Geräte, Datenkommunikation usw.

Patent

Dieses Produkt hat ein oder mehrere anwendbare Patente. Weitere Informationen zu Patenten finden Sie unter https://www.belden.com/patents.

Leiter

Element Size Stranding Material No. of Pairs
Pair(s) 24 AWG Solid BC - Bare Copper 2

Isolierung

Material Color Code
PO - Polyolefin White/Orange Stripe & Orange, White/Green Stripe & Green

Bonded-Pair

Ja

Äußere Abschirmung

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

Äußere Ummantelung

Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.235 in (5.97 mm) No

Gesamtdurchmesser des Kabels (Nennwert)

0,235 Zoll (5,97 mm)

Elektrik

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 90 pF/100m

Verzögerung

Max. Delay Max. Delay Skew Nom. Velocity of Prop.
552 ns/100m 45 ns/100m 70%

Hochfrequenz

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.1 dB/100m 65.3 62.3 63.2 60 63.8 60.8 23 23 100 ± 20.2 105 ± 10
4 4.0 dB/100m 56.3 53.3 56.3 49 51.7 48.7 23 23 100 ± 14.2 100 ± 10
8 5.6 dB/100m 51.8 48.8 46.2 43 45.7 42.7 23 24.5 100 ± 11.3 100 ± 10
10 6.3 dB/100m 50.3 47.3 43.9 41 43.8 40.8 25 25 100 ± 11.3 100 ± 10
16 8.0 dB/100m 47.3 44.3 35.2 36 39.7 36.7 25 25 100 ± 11.3 100 ± 10
20 9.0 dB/100m 45.8 42.8 36.5 33.5 37.7 34.7 25 25 100 ± 11.3 100 ± 10
25 10.1 dB/100m 44.3 41.3 34.2 30.9 35.8 32.8 25.5 24.3 100 ± 11.3 100 ± 10
31.25 11.4 dB/100m 42.9 39.9 31.3 28 33.9 30.9 23.6 23.6 100 ± 13.2 100 ± 10
62.5 16.5 dB/100m 38.4 35.4 21.6 19 27.8 24.8 21.5 21.5 100 ± 16.9 100 ± 10
100 21.3 dB/100m 35.3 32.3 17.1 11 23.8 20.8 20.1 20.1 100 ± 20.0 100 ± 10
155 28.1 dB/100m 32.5 29.5 4.4 1.4 19.9 16.9 15.8 100 ± 25.0 100 ± 15
200 32 dB/100m 30.8 27.8 4 1 17.7 14.7 15 100 ± 25.0 100 ± 15

Speisung

UL Voltage Rating
300 V (CMR)

Temperatur

UL Temperature Operating Installation Storage
60°C -40°C To +80°C -25°C To +60°C -40°C To +80°C

Biegeradius

Stationary Min.
1.5 in (38 mm)

Maximale Zugspannung

55 lbs (25 kg)

Gewicht Kabelgebinde

31 Pfund/1000 Fuß

Umweltverträglichkeit

Indoor/Outdoor, Indoor, Outdoor, Sonnenlichtbeständigkeit, Ölbeständigkeit

Entflammbarkeit/Brandverhalten

UL 1685 (FT4), FT4, IEEE 1202 vertikaler Flammtest, IEC 60332-1-2

​​​​​​​CPR-Compliance

CPR Euroklasse: Eca

NEC/UL-Compliance

Artikel 800, CMR

CEC/C(UL)-Compliance

CMR

NEMA-Compliance

NEMA WC-63.1

Datenkategorie

Kategorie 5e

TIA/EIA-Compliance

ANSI/TIA-568.2-D Kategorie 5e

ISO/IEC-Compliance

ISO/IEC 11801-1, IEC 61156-5

Einhaltung der europäischen Richtlinien

EU-Richtlinie 2015/863/EU (RoHS 2 Ergänzung), REACH, EU-Richtlinie 2011/65/EU (RoHS 2), EU-Richtlinie 2012/19/EU (WEEE), REACH: 2020-01-16

Compliance mit Vorschriften im Vereinigten Königreich

UKCA-Kennzeichnung

APAC-Compliance

China RoHS II (GB/T 26572-2011)

Anmerkungen

Betriebstemperatur abhängig von der Längeneinstufung. Das Kabel besteht eine Kaltbiegung von -40 °C gemäß UL 1581. Grenzwerte unter 4 MHz dienen nur zur Information.

Aktualisierung und Überarbeitung

Revisionsnummer: 0.694 Revisionsdatum: 09-07-2025

Fußnote

C – KISTE AUFGEROLLTE AUFMACHUNG.

Aktualisierung und Überarbeitung

Revisionsnummer: 0.694 Revisionsdatum: 09-07-2025

Fußnote

C – KISTE AUFGEROLLTE AUFMACHUNG.


Artikelnummer

Artikelnr. Farbe Wicklung Länge UPC Fußnote
7933A 0101000 Schwarz Rolle 1.000 ft 612825191643 C
7933A 1NH1000 Blaugrün Rolle 1.000 ft 612825191667 C
