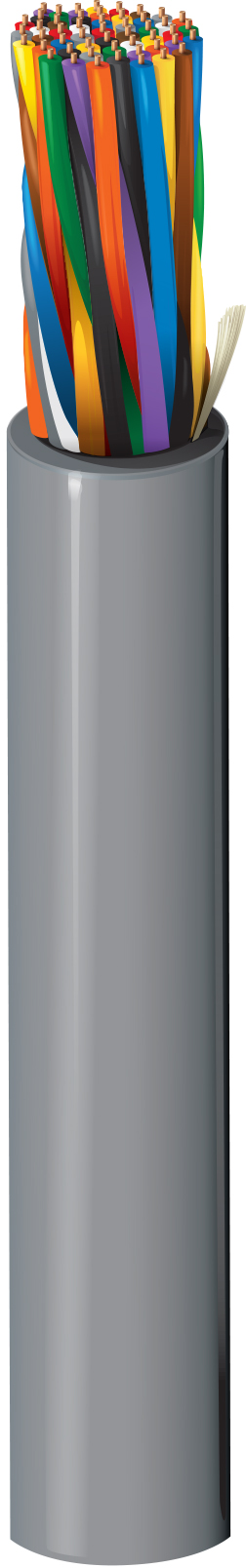

Produktnummer: IBDN25R

Category 5e Backbone Cable, 25 Pair, U/UTP, CMR

Category 5e Premise Backbone Cable (100MHz), 25 Pair, 24 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket

  • Verfügbarkeit:
    Americas | Asia Pacific
  • Status:
    Aktiv
IBDN25R
  • IBDN25R
1 von 1

Technische Daten

Expand All

Suitable Applications

Premise Backbone Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Conductor

Size Stranding Material No. of Pairs
24 AWG Solid BC - Bare Copper 25

Insulation

Material Color Code
PO - Polyolefin Western Electric (Non-Striped)

Outer Jacket

Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.510 in (13.0 mm) Yes

Overall Cable Diameter (Nominal)

0.510 in (13.0 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 68%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. RL (Return Loss) [dB] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 62.3 20.0 100 ± 15%
4 4.1 dB/100m 53.3 23.0 100 ± 15%
8 5.8 dB/100m 48.8 24.5 100 ± 15%
10 6.5 dB/100m 47.3 25.0 100 ± 15%
16 8.2 dB/100m 44.3 25.0 100 ± 15%
20 9.3 dB/100m 42.8 25.0 100 ± 15%
25 10.4 dB/100m 41.3 24.3 100 ± 15%
31.25 11.7 dB/100m 39.9 23.6 100 ± 15%
62.5 17.0 dB/100m 35.4 21.5 100 ± 15%
100 22.0 dB/100m 32.3 20.1 100 ± 15%

Voltage

UL Voltage Rating
300 V (CMR)

Temperature

UL Temperature Operating Installation Storage
60°C -30°C To +60°C 0°C To +60°C -30°C To +60°C

Bend Radius

Stationary Min. Installation Min.
5.25 in (133 mm) 10.25 in (260.4 mm)

Max. Pull Tension

150 lbs (68 kg)

Bulk Cable Weight

146 lbs/1000ft

Environmental Suitability

Riser, Indoor

Flammability / Reaction to Fire

UL1666 Riser, FT4

CPR Compliance

CPR Euroclass: Fca; CPR UKCA Class: Fca

NEC / UL Compliance

CMR

CEC / C(UL) Compliance

CMR

ICEA Compliance

S-90-661

NEMA Compliance

NEMA WC-63.1

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 5e

Third Party Performance Verification

Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

IBDN25P

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings.
