Produktnummer: 4794RBUHD1 B50

12 GHz Series 7 BNC Connector

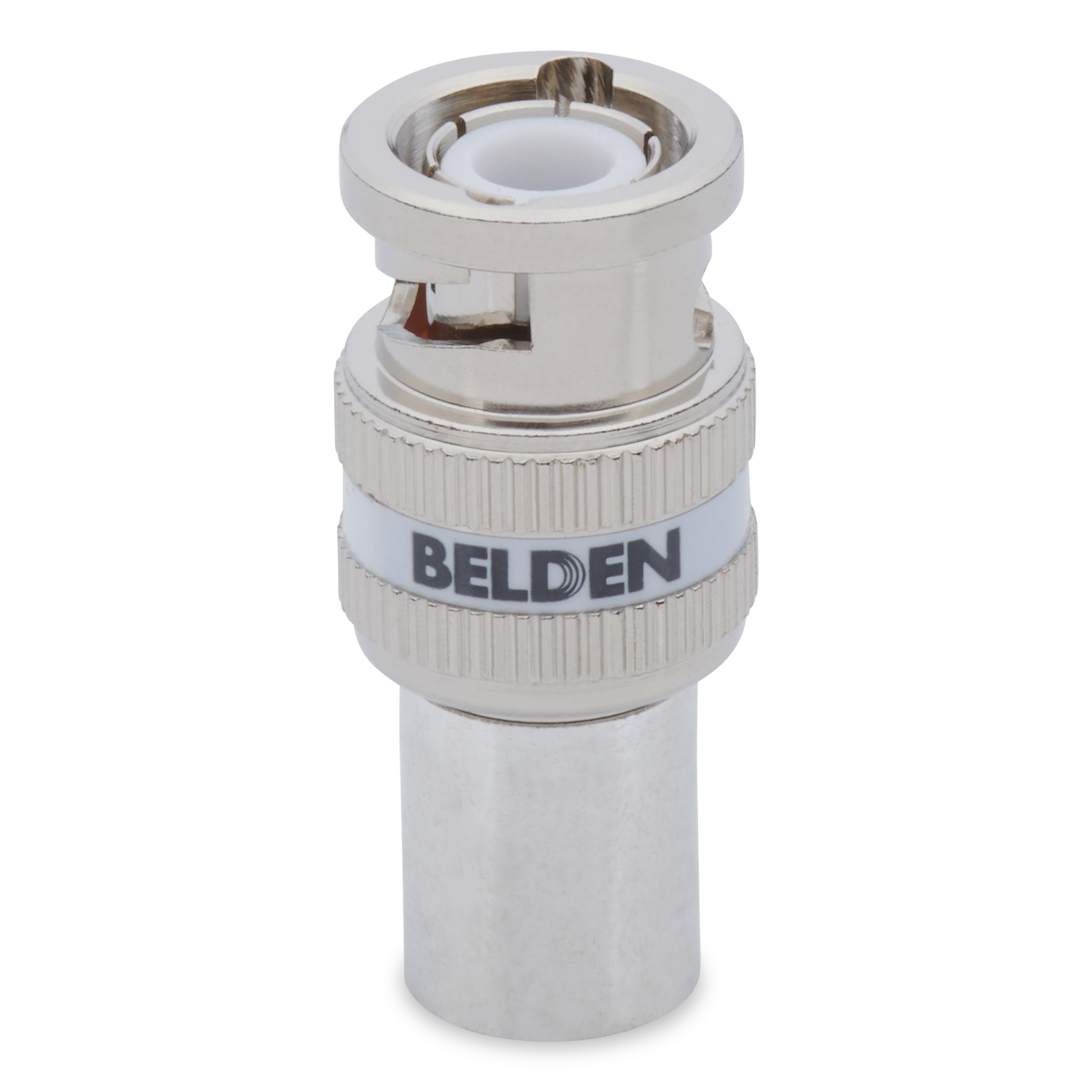

Series 7, 12 GHz, UHD, BNC, 1 piece connector

  • Verfügbarkeit:
    Global
  • Status:
    Aktiv
4794RBUHD1 B50
  • 4794RBUHD1 B50
1 von 1

Technische Daten

Expand All

Packaging

25 Pack

Materials

Description Material
Nut Polished Nickel
Body Polished Nickel
Contact Brass, Gold Plated
Insulator PTFE

Impedance

Nominal Characteristic Impedance
75 Ohm

Return Loss

Frequency [MHz] Minimum Return (RL)
5-1485 15 dB
1485-3000 10 dB
3000-6000 7 dB
6000-12000 4 dB

Electrical Characteristics Notes

SMPTE 2082-1 Return Loss or better

Connector System Compatibility

Coax

Connector Interface Type

BNC

Gender

Male - plug

Connector Series Name

UHD

Color Band

White

Locking

No

Tool Compatibility

KTH-1000 (crimp), KTH-201 (crimp die)

Termination Type

Compression

Cable Center Conductor Diameter Limits

0.0460 - 0.0519 in

Cable Dielectric Diameter Limits

0.2283 - 0.2362 in

Cable Outer Jacket Diameter Limits

0.3110 - 0.3267 in

Series Type

7

Environmental Space

Indoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

CA Prop 65

Yes

Suitability - Indoor

Yes

Suitability - Outdoor

No

Plenum (Y/N)

No

Update and Revision

Revision Number: 0.46 Revision Date: 03-04-2023

Update and Revision

Revision Number: 0.46 Revision Date: 03-04-2023


Report An Error

Artikelnummer

Item # Color UPC
4794RBUHD1 B50 White 845671005561
