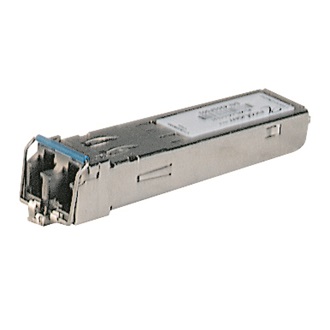

SFP Fiberoptic Gigabit Ethernet Transceiver SM with LC connector

Verfügbarkeit:

Global
Status:

Aktiv

Zitieren

Hirschmann

M-SFP-LX+/LC

Technische Daten
Artikelnummer
Ressourcen

Technische Daten

Product description

Type	M-SFP-LX+/LC, SFP Transceiver
Description	SFP Fiberoptic Gigabit Ethernet Transceiver SM
Port Type and Quantity	1 x 1000 Mbit/s with LC connector

Network size - length of cable

Single mode fiber (SM) 9/125 µm	14 - 42 km (Link Budget at 1310 nm = 5 - 20 dB; A = 0,4 dB/km; D = 3,5 ps/(nm*km))

Power requirements

Operating Voltage	power supply via the switch
Power consumption	1 W

Software

Diagnostics	Optical input and output power, transceiver temperature

Ambient conditions

Operating temperature	0-+60 °C
MTBF (Telcordia SR-332 Issue 3) @ 25°C	856 Years
Minimum Storage Temperature	-40-+85 °C
Relative humidity (non-condensing)	5-95 %
Dimensions (WxHxD)	13.4 mm x 8.5 mm x 56.5 mm
Weight	60 g
Mount Type	SFP slot
Protection class	IP20

Mechanical stability

IEC 60068-2-6 vibration	1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)	6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst)	2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity	3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)

EMC emitted immunity

EN 55022	EN 55022 Class A
FCC CFR47 Part 15	FCC 47CFR Part 15, Class A

Approvals

Safety of information technology equipment	EN60950
Hazardous locations	depending on deployed switch
Shipbuilding	depending on deployed switch

Reliability

Guarantee	24 months (please refer to the <a href="https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf"terms of guarantee </a for detailed information)

Scope of delivery and accessories

Scope of delivery	SFP module

Further Instructions

Product Documentation	https://www.doc.hirschmann.com
Certificates	https://www.doc.hirschmann.com/certificates.html

History

Update and Revision	Revision Number: 0.118 Revision Date: 05-07-2025

Information

Update and Revision	Revision Number: 0.118 Revision Date: 05-07-2025

Report An Error

Artikelnummer

Item #	Type
942023001	M-SFP-LX+/LC
