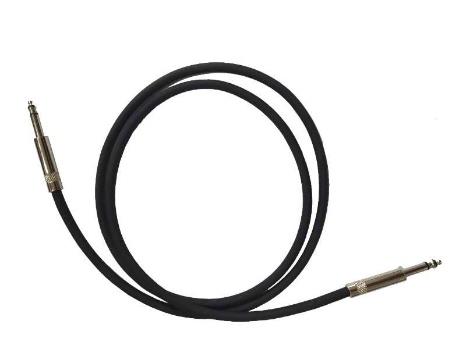

1172A Microphone Cable, Straight Stereo Plug, Audio Patch Cord

Verfügbarkeit:

Asia Pacific
Status:

Aktiv

Zitieren

APC1172A44100D9M

Technische Daten
Artikelnummer
Ressourcen

Technische Daten

Physical Characteristics (Overall)

Inner Shield

Type	Coverage [%]
Braid	95%

Packaging	Product Individually packaged in a transparent polybag.

Connectors

Materials

Description	Material	Type
Connector	Nickel contacts	Bantam(TT) 4.4mm plug

Construction and Dimensions

Cable Type	Star quad microphone cable (1172A)

Temperature Range

Operating Temperature Range	-10℃ to +60℃

Mechanical Characteristics

Maximum Recommended Pulling Tension	37 lbs
Min Bend Radius (Overall Cable)	2 in.

Related Part Numbers

Related Parts	Belden’s A PNS1 048 and A PNS10 96 Audio Patch Panel

History

Update and Revision	Revision Number: 0.14 Revision Date: 04-08-2022

Information

Update and Revision	Revision Number: 0.14 Revision Date: 04-08-2022

Report An Error

Artikelnummer

Item #	Color	Length
APC1172A44100D9M	Black	0.9 m
APC1172A44102D0M	Black	2.0 m
