Produktnummer: BE43907

Speaker Cable PVC 8x2.5mm², CPR Eca.

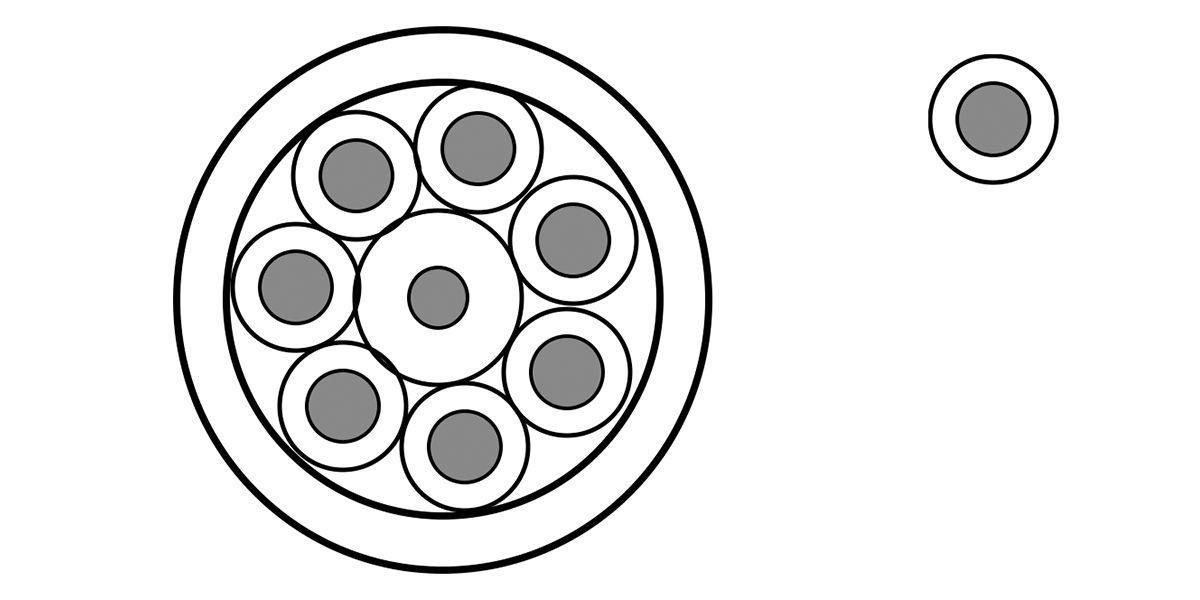

Speaker Cable, 8 Conductor 2.5mm² (50 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), PVC Insulation, PVC Jacket, Flexible, CPR Euroclass Eca.

  • Verfügbarkeit:
    Global
  • Status:
    Aktiv
BE43907
  • BE43907
1 von 1

Technische Daten

Expand All

Suitable Applications

Speaker cable

Conductor

Size Stranding Material
13 Stranded BC - Bare Copper

Insulation

Element Material Nom. Insulation Diameter Color Code
Outer Conductor(s) PVC - Polyvinyl Chloride 2.85 mm (0.112 in) Red, Blue, Black, White, Green, Yellow, Purple, Brown
Central Conductor PVC - Polyvinyl Chloride 3.75 mm (0.148 in)

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 12.4 mm

Outer Jacket1 Table Notes

Matte Finish

Electricals

Max. Conductor DCR Max. Current
8 Ohm/km 9 A

Temperature

Storage
-15°C To +60°C

Bend Radius

Installation Min.
65 mm

Max. Pull Tension

20 N (4.5 lbf)

Environmental Suitability

Indoor - Euroclass Eca

Flammability / Reaction to Fire

IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.173 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.173 Revision Date: 09-07-2025


Report An Error

Artikelnummer

Item # Color Putup Type Length
BE43907.00250 Black Reel 250 m
