Produktnummer: 8233WB

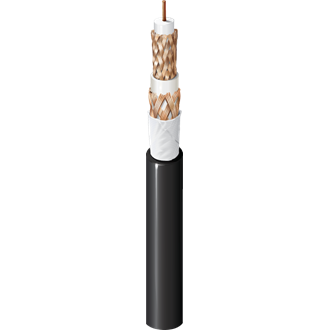

Video Triax, RG11, #14 Solid BC, CPE Jacket, Waterblocked, CM

14 AWG solid .064" bare copper conductor, gas-injected foam HDLPE insulation, bare copper braids (95% & 80% coverage), flooded, CPE jacket.

  • Verfügbarkeit:
    Global
  • Status:
    Aktiv
8233WB
  • 8233WB
1 von 1

Technische Daten

Expand All

Suitable Applications

Indoor/Outdoor, Aerial - when supported by messenger wire

RG Type

11

Series Type

11

Conductor

No. of Elements Size Stranding Nom. Diameter Material
1 14 AWG Solid 0.064 in BC - Bare Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 0.285 in (7.24 mm) White

Insulation Table Notes

Gas Injected

Inner Shield

Shield Type Material Coverage
Braid Bare Copper (BC) 95%

Inner Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.371 in (9.42 mm)

Outer Shield

Outer Shield Type Material Coverage
Braid Bare Copper (BC) 80%

Outer Shield Table Notes

CoreGuard®

Outer Jacket

Material Nom. Diameter
CPE - Chlorinated Polyethylene 0.475 in (12.1 mm)

Overall Cable Diameter (Nominal)

0.475 in (12.1 mm)

Return Loss

Frequency Min. Return Loss
5 - 850 MHz 21 dB
850 - 4500 MHz 15 dB

Attenuation

Frequency Nom. Attenuation
1 MHz 0.14 dB/100ft
3.6 MHz 0.3 dB/100ft
10 MHz 0.4 dB/100ft
71.5 MHz 1.1 dB/100ft
135 MHz 1.6 dB/100ft
270 MHz 2.3 dB/100ft
360 MHz 2.6 dB/100ft
540 MHz 3.3 dB/100ft
720 MHz 3.8 dB/100ft
750 MHz 4 dB/100ft
1000 MHz 4.6 dB/100ft
1500 MHz 5.9 dB/100ft
2250 MHz 7.4 dB/100ft
3000 MHz 9 dB/100ft
4500 MHz 12.5 dB/100ft

Electricals

Nom. Conductor DCR Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
2.6 Ohm/1000ft (8.5 Ohm/km) 1.7 Ohm/1000ft (5.6 Ohm/km) 1.5 Ohm/1000ft (4.9 Ohm/km) 16.1 pF/ft (52.8 pF/m) 75 Ohm 84%

Voltage

UL Voltage Rating
300 V RMS

Temperature

UL Temperature Operating Installation Storage
75°C -30°C To +75°C -20°C To +75°C -30°C To +90 °C

Bend Radius

Stationary Min. Installation Min.
4.75 in (121 mm) 4.75 in (121 mm)

Max. Pull Tension

240 lbs (110 kg)

Bulk Cable Weight

131 lbs/1000ft

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger wire

Flammability / Reaction to Fire

UL1685 Vertical Tray, FT1

NEC / UL Compliance

Article 800, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Flooding grease between outer jacket and outer braid. Print legend includes sequential footage marks.
