Product Number: 9583

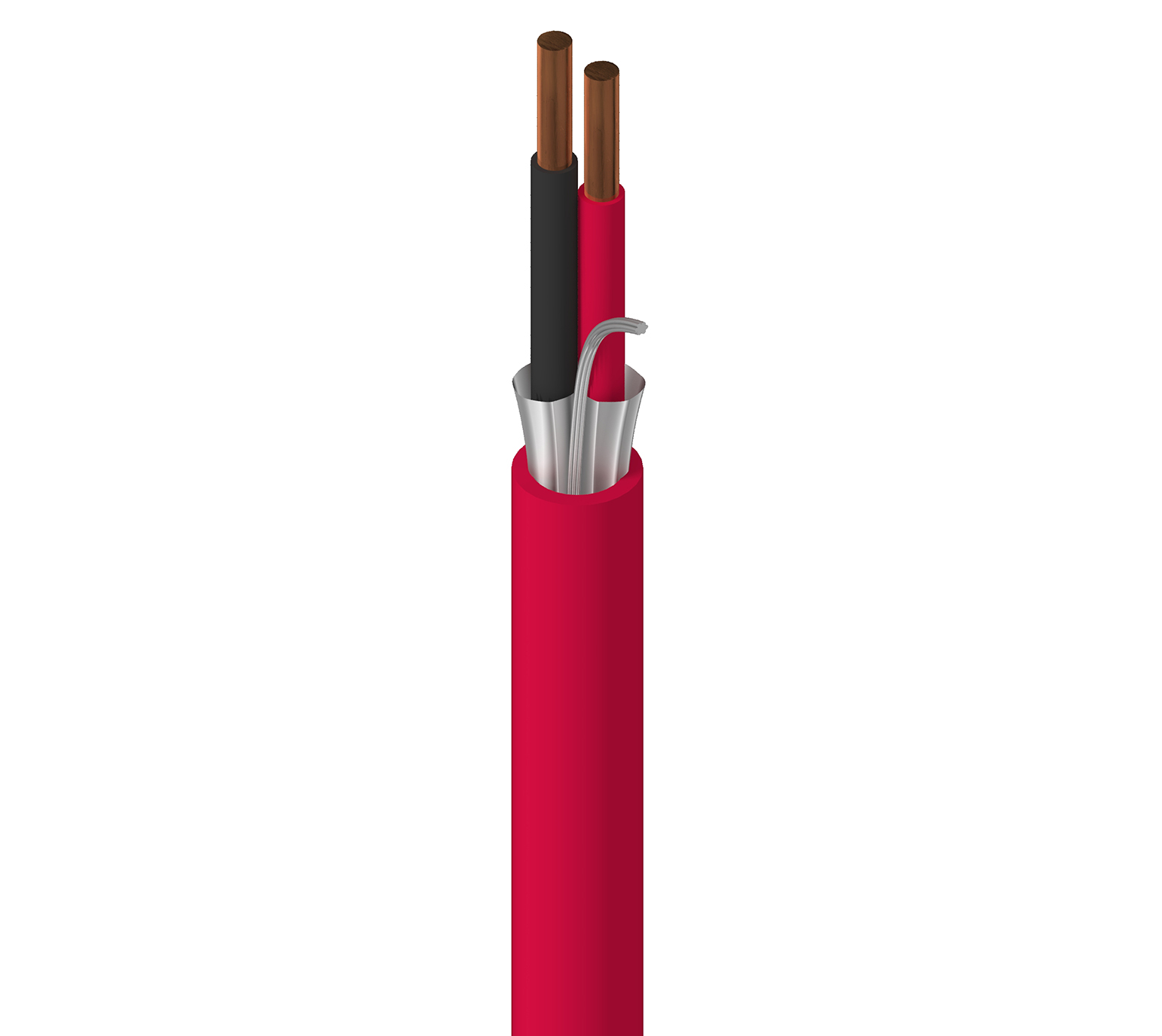

Electronic, 2 C #12 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR

Electronic, 2 Conductor 12AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR

  • Availability:
    Global
  • Status:
    Active
9583
  • 9583
1 of 1

Technische Daten

Expand All

Suitable Applications

fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 12 AWG Solid BC - Bare Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.023 in (0.58 mm) 0.127 in (3.23 mm) Black and Red

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 16 AWG (19x29) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.042 in (1.1 mm) 0.343 in

Overall Cable Diameter (Nominal)

0.343 in

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Inductance Max. Current
Pair(s) 1.6 Ohm/1000ft 86 pF/ft (280 pF/m) 160 pF/ft (520 pF/m) 0.18 µH/ft (0.59 µH/m) 21 Amps per Conductor at 25ºC

Nom Outer Shield DCR@Cond DCR1-cnv

3.5 Ohm/1000ft (11 Ohm/km)

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
105°C -20°C To +75°C

Bend Radius

Stationary Min. Installation Min.
5.14 in (131 mm) 5.14 in

Max. Pull Tension

197 lbs (89.4 kg)

Bulk Cable Weight

80 lbs/1000ft

Environmental Suitability

Indoor, Sunlight Resistance

Flammability / Reaction to Fire

UL1666 Riser, FT4

NEC / UL Compliance

Article 760, FPLR

CEC / C(UL) Compliance

FAS105

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

California State Fire Marshall

Notes

This cable passes the UL 70, 000 BTU Flame Test (comparable to the IEEE 383 Flame Test) and are listed by the California State Fire Marshall. Component Recognized UL 2464, 300V 80C.

Update and Revision

Revision Number: 0.581 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.581 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.
