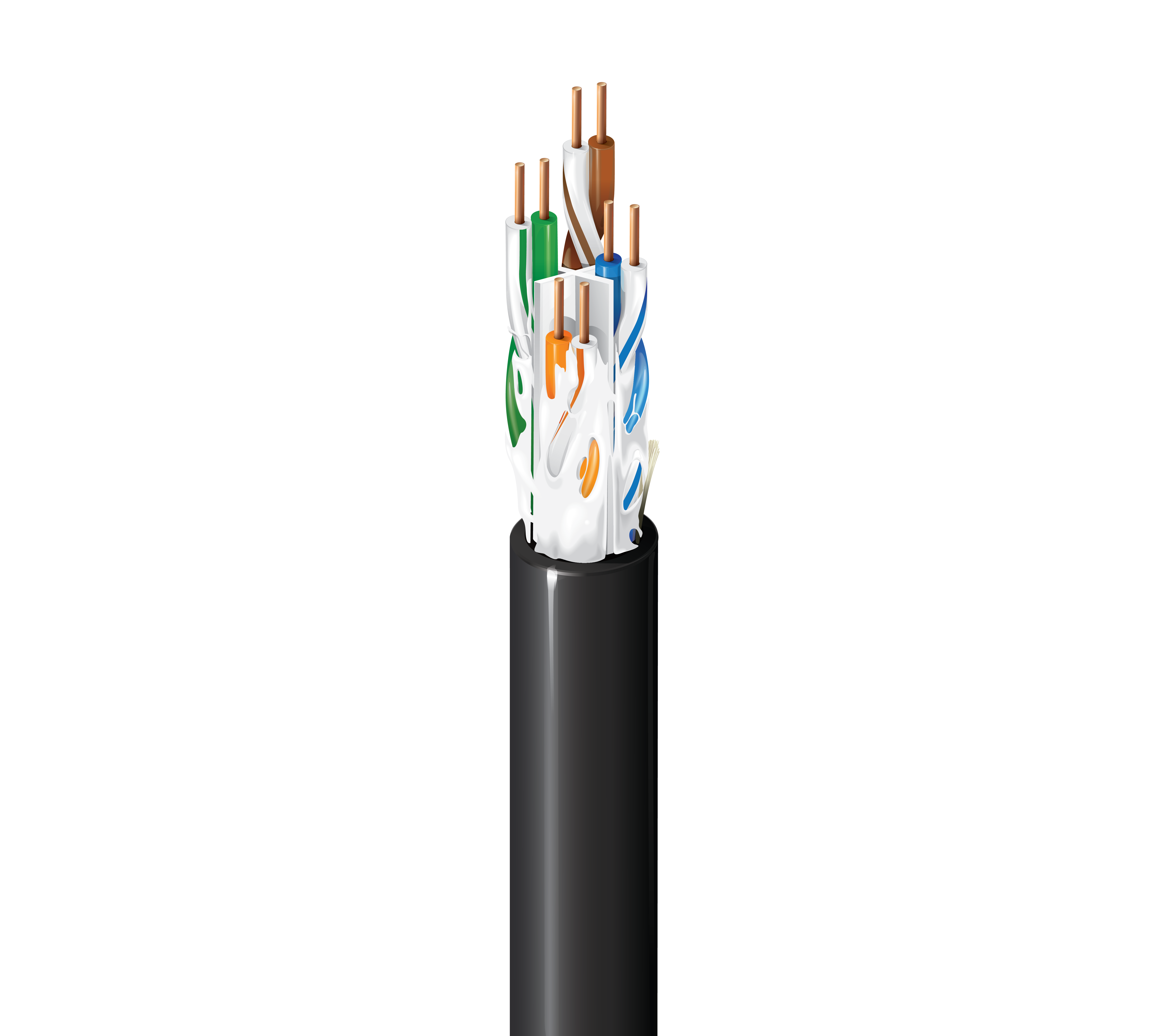

Produktnummer: VersaLAN I/O OSP Kat. 6 UTP

Mohawk Kategorie 6 Innen-/Außenkabel, 4 Paar, U/UTP, OSP/CM-LS, LSZH

Mohawk Kategorie 6 Premise Horizontalkabel, Innen-/Außen-OSP/CM-LS, 4-Paar, 23 AWG massive blanke Kupferleiter, U/UTP, gelgefüllt, Haloarrest® UV-beständiger, flammhemmender LSZH-Mantel

  • Verfügbarkeit:
    Global
  • Status:
    Aktiv

Technische Daten

Mögliche Anwendungen

OSP-Outdoor, Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE, laute Umgebungen: Nicht geeignet für den Einsatz auf See+++

Leiter

Size Stranding Material No. of Pairs
23 AWG Solid BC - Bare Copper 4

Isolierung

Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Wasserabweisend

Gelfüllung

Äußere Ummantelung

Separator Material Nom. Diameter
Flexweb® Core Separator LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.275 in (6.99 mm)

Gesamtdurchmesser des Kabels (Nennwert)

0,275 Zoll (6,99 mm)

Elektrik

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 160 pF/100m

Verzögerung

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100ft 65%

Hochfrequenz

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
1 2.0 74.3 72.3 72.3 70.3 67.8 64.8 20.0 100 ± 15 100 ± 15 40.0 35.0
4 3.8 65.3 63.3 61.5 59.5 55.7 52.7 23.0 100 ± 15 100 ± 15 40.0 23.0
8 5.3 60.8 58.8 55.4 53.4 49.7 46.7 24.5 100 ± 15 100 ± 15 40.0 16.9
10 6.0 59.3 57.3 53.4 51.4 47.8 44.8 25.0 100 ± 15 100 ± 15 40.0 15.0
16 7.6 56.3 54.3 48.7 46.7 43.7 40.7 25.0 100 ± 15 100 ± 15 38.0 10.9
20 8.5 54.8 52.8 46.3 44.3 41.7 38.7 25.0 100 ± 15 100 ± 15 37.0 9.0
25 9.5 53.3 51.3 43.8 41.8 39.8 36.8 24.3 100 ± 15 100 ± 15 36.0 7.0
31.25 10.7 51.9 49.9 41.2 39.2 37.9 34.9 23.6 100 ± 15 100 ± 15 35.1 5.1
62.5 15.4 47.4 45.4 32.0 30.0 31.8 28.8 21.5 100 ± 15 100 ± 15 32.0
100 19.8 44.3 42.3 24.5 22.5 27.8 24.8 20.1 100 ± 15 100 ± 15 30.0
155 25.2 41.5 39.5 16.3 14.3 23.9 20.9 18.8 100 ± 22 100 ± 15 28.1
200 29.0 39.8 37.8 10.8 8.8 21.7 18.7 18.0 100 ± 22 100 ± 15 27.0
250 32.8 38.3 36.3 5.5 3.5 19.8 16.8 17.3 100 ± 32 100 ± 15 26.0
500 48.9 33.8 31.8 15.2 100 ± 32 100 ± 15 23.0
550 51.8 33.2 31.2 14.9 100 ± 32 100 ± 15 22.6

Speisung

UL Voltage Rating
300 V (CM-LS)

Temperatur

UL Temperature Operating Storage
60°C -40°C To +60°C -40°C To +60°C

Biegeradius

Stationary Min.
2.75 in (69.9 mm)

Maximale Zugspannung

25 lbs (11 kg)

Gewicht Kabelgebinde

39 lbs/1000ft (58 kg/km)

Umweltverträglichkeit

Innen-/Außenbereich, Innenbereich, Außenbereich, Sonnenlichtbeständigkeit, Freileitungen – nur Schwarz, bei Unterstützung durch Längstragseil

Nachhaltigkeit

Produktlinse™, Umweltproduktdeklaration (EPD) verfügbar

Entflammbarkeit/Brandverhalten

UL 1685 (begrenzte Rauchentwicklung), IEC 60332-1-2

NEC/UL-Compliance

Artikel 800, CM-LS

CEC/C(UL)-Compliance

CMG-ST1

ICEA-Compliance

S-116-732, S-56-434, S-99-689, S-100-685

IEEE-Compliance

IEEE 802.3bt Typ1, Typ2, Typ3, Typ4

NEMA-Compliance

ANSI/NEMA WC-66

Datenkategorie

Kategorie 6

TIA/EIA-Compliance

ANSI/TIA-568.2-D Kategorie 6

ISO/IEC-Compliance

ISO/IEC 11801-1, IEC 61156-5

Einhaltung der europäischen Richtlinien

EU-CE-Zeichen, EU-Richtlinie 2015/863/EU (RoHS 2 Änderung), EU-Richtlinie 2011/65/EU (RoHS 2), EU-Richtlinie 2012/19/EU (WEEE), REACH: 2020-01-16

Compliance mit Vorschriften im Vereinigten Königreich

UKCA-Kennzeichnung

APAC-Compliance

China RoHS II (GB/T 26572-2011)

Aktualisierung und Überarbeitung

Revisionsnummer: 0.41 Revisionsdatum: 02-20-2026

Aktualisierung und Überarbeitung

Revisionsnummer: 0.41 Revisionsdatum: 02-20-2026


Artikelnummer

Artikelnr. Farbe Wicklung Länge
M58772 Schwarz Rolle 1.000 ft
M59132 Blau Rolle 1.000 ft
M59092 Weiß Rolle 1.000 ft
