Produktnummer: GIOSDG1

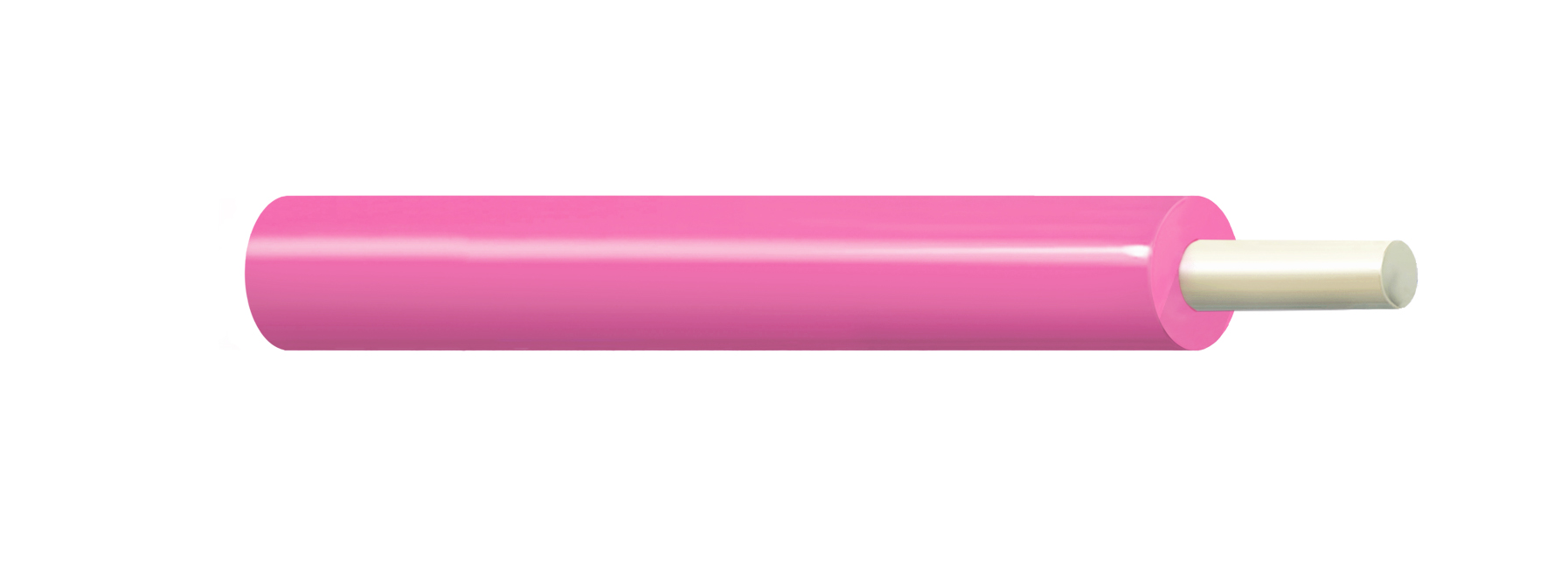

Indoor semi-tight buffered pigtail LSZH jacket Colored fiber for pigtail Simplex MM OM3.

Indoor semi-tight buffered pigtail with Low Smoke Zero Halogen outer jacket. Colored fiber for pigtail Simplex MM OM3.

  • Verfügbarkeit:
    Global
  • Status:
    Aktiv
GIOSDG1
  • GIOSDG1
1 von 1

Technische Daten

Expand All

Suitable Applications

Flexible terminating leads such as pigtails, patchcords and test leads. Support all computer network applications such as FDDI, Gigabit Ethernet and ATM. Short distance applications for indoor use.

Fiber Type

OM3

Fiber Buffer Material

LSZH - Low Smoke Zero Halogen (Flame Retardant)

Fiber Buffer Construction

Semi-Tight

Fiber Buffer Diameter

0.9 mm

Fiber Count

1

Jacket Material

LSZH - Low Smoke Zero Halogen (Flame Retardant)

Nom. Diameter

0.9 mm (0.035 in)

Optical Characteristics

Wavelength 850 nm 1300 nm
Max. Attenuation 2.9 dB/km 0.9 dB/km

Mechanical Tests

Description Tested Standard
Cable Max. Tensile Strength Installation (Short Term) IEC 60794-1-21-E1
Cable Max. Tensile Strength Operation (Long Term) IEC 60794-1-21-E1
Cable Max. Crush Resistance Installation (Short Term) IEC 60794-1-21-E3

Max. Tensile Strength During Installation

3 N (0.67 lbf)

Max. Tensile Strength During Operation

1 N (0.22 lbf)

Bulk Cable Weight

0.67 kg/km (0.45 lbs/1000ft)

Installation Temperature Range

-15 °C to +50 °C

Operating Temperature Range

-40 °C to +70 °C

Storage Temperature Range

-40 °C to +70 °C

Environmental Suitability

Indoor (Not Riser or Plenum)

Flammability / Reaction to Fire

IEC 60332-1-2

ISO/IEC Compliance

IEC 60794ISO/IEC 11801-1

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Update and Revision

Revision Number: 0.152 Revision Date: 09-25-2025

Update and Revision

Revision Number: 0.152 Revision Date: 09-25-2025


Report An Error

Artikelnummer

Item # Color Putup Type Length EAN
GIOSDG1.002100 Black Reel 2,100 m 8719605074836
GIOSDG1.102100 Blue Reel 2,100 m 8719605074935
GIOSDG1.042100 Brown Reel 2,100 m 8719605074874
GIOSDG1.082100 Gray Reel 2,100 m 8719605074911
GIOSDG1.052100 Green Reel 2,100 m 8719605074881
GIOSDG1.062100 Orange Reel 2,100 m 8719605074898
GIOSDG1.092100 Pink Reel 2,100 m 8719605074928
GIOSDG1.072100 Red Reel 2,100 m 8719605074904
GIOSDG1.032100 Violet Reel 2,100 m 8719605074867
GIOSDG1.012100 White Reel 2,100 m 8719605074843
GIOSDG1.022100 Yellow Reel 2,100 m 8719605074850
