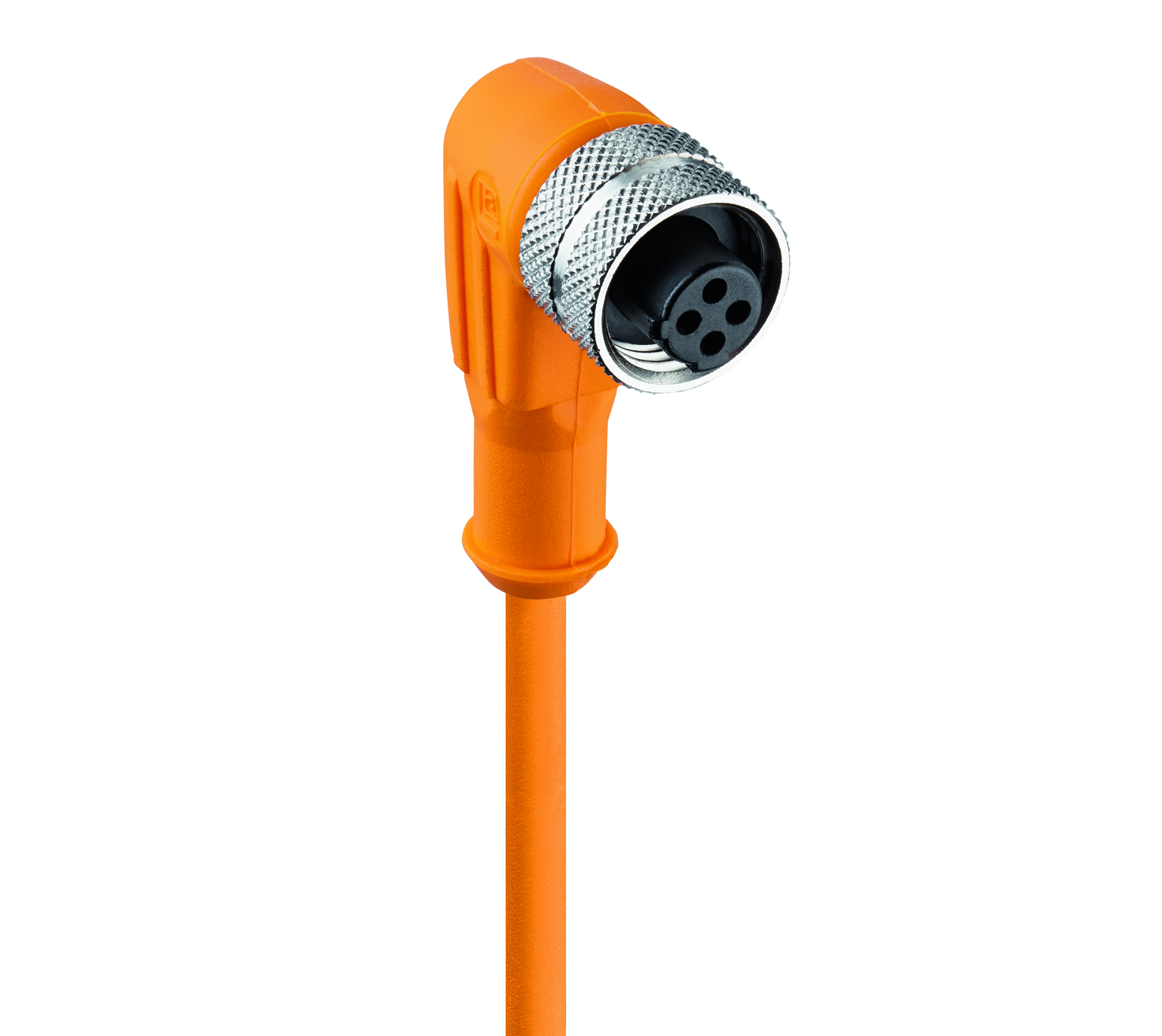

1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Female, angled, 4-pin, U-coded, orange body, 230 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm²

Verfügbarkeit:

Global
Status:

Aktiv

Zitieren

Technische Daten
Artikelnummer
Ressourcen

Technische Daten

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4
brown	white	blue	black

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	1/2"-20UNF-2B
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	4
Coding, Side 1	U (1/2"-20UNF-2B)
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	250 V
Rated Voltage (UL)	250 V AC
Rated Impulse Voltage	2.5 kV
Operating Voltage	230 V AC/DC
Current Rating	4 A
Rated Current (UL)*	2.5 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 50 °C
Protection Degree / IP Rating**	IP65, IP67
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Orange
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Gasket Material	FKM

Circuitry

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number	007
Conductor Size	0.25 mm²
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 1 M
Conductor Material	Cu
Cable Jacket Material	PVC
Cable Jacket Color	orange
Cable Diameter D	ø 5.0 ± 0.2 mm
Wire Insulation Material	PVC
Insulated Wire Diameter	ø 1.35 mm
Ambient Temperature (Fixed Installation)	- 40 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	+ 5 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)	+ 5 °C - + 60 °C
UL Cable Type	AWM: 2464
Flammability Class (Cable Jacket)	DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1
Cable Characteristics	Free of lacquer wetting disturbing substances; Exclusion of silicone

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Oil Resistance	Good chemical and oil resistance

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
