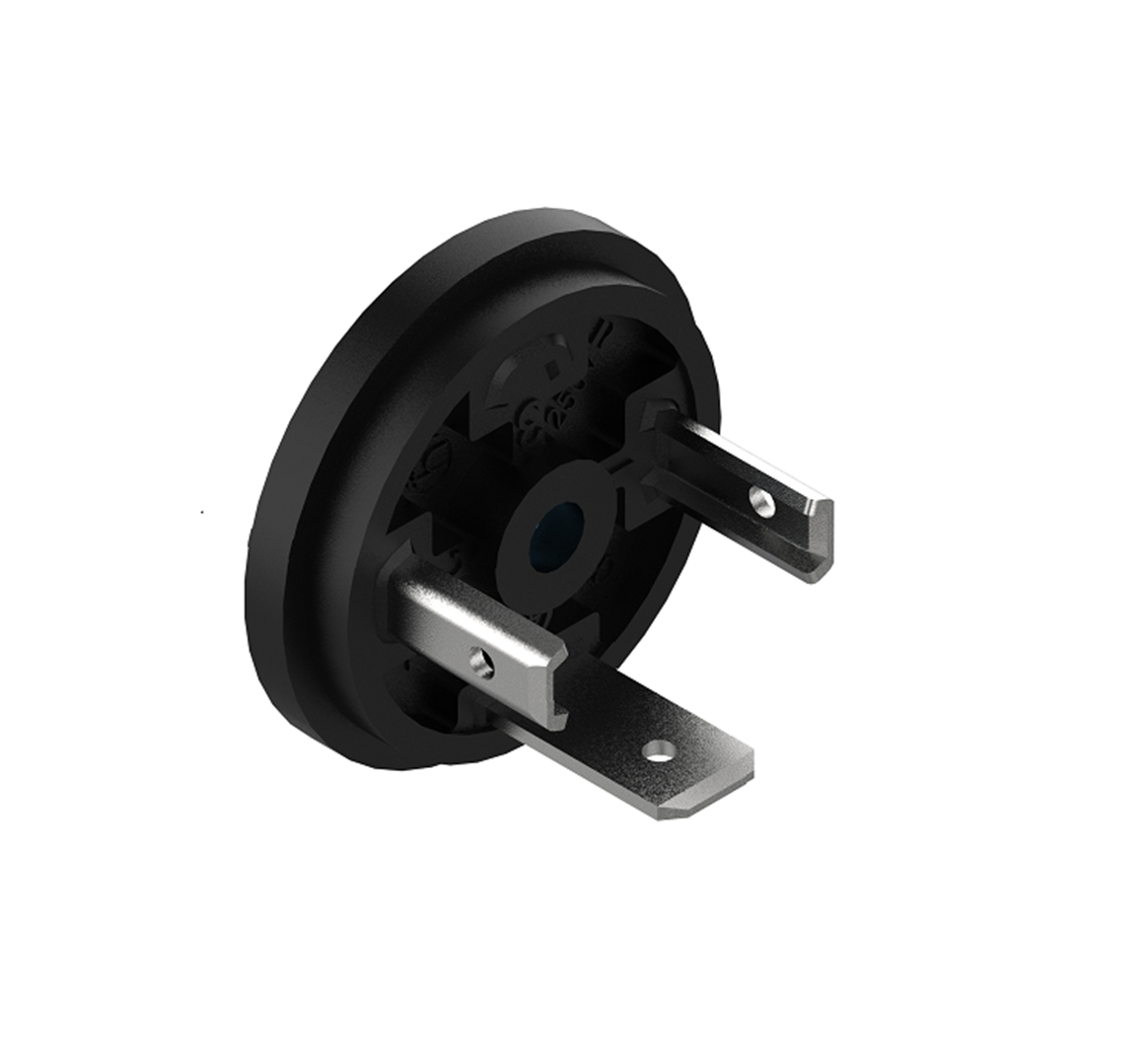

175301-803-A (DIN 43650-A): Male Receptacle for Injection Molding, Form A, Contacts: 2+PE, solder type, 400 V | 16 A

Technische Daten

Product Family	Valve Connectors
Side 1 Product Sub Family	GSR-U
Connector Type	Receptacle
Connector Sub Type	Circular receptacle with solder contacts
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Number of Pins	2+PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Rated Impulse Voltage	4.0 kV
Operating Voltage	400 V AC/230 V DC
Current Rating	16 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Solder
Cross Section	0.08 - 1.5 mm²
Ambient Temperature (Operation)*	-40 °C - +125 °C
Protection Degree / IP Rating**	IP65
Design Standard	DIN EN 175301-803-A, ISO 4400
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-0
Housing Color	black

VDE	yes
SEV	yes

RoHS Compliant	yes

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	Do not connect or disconnect under load.

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	Do not connect or disconnect under load.
