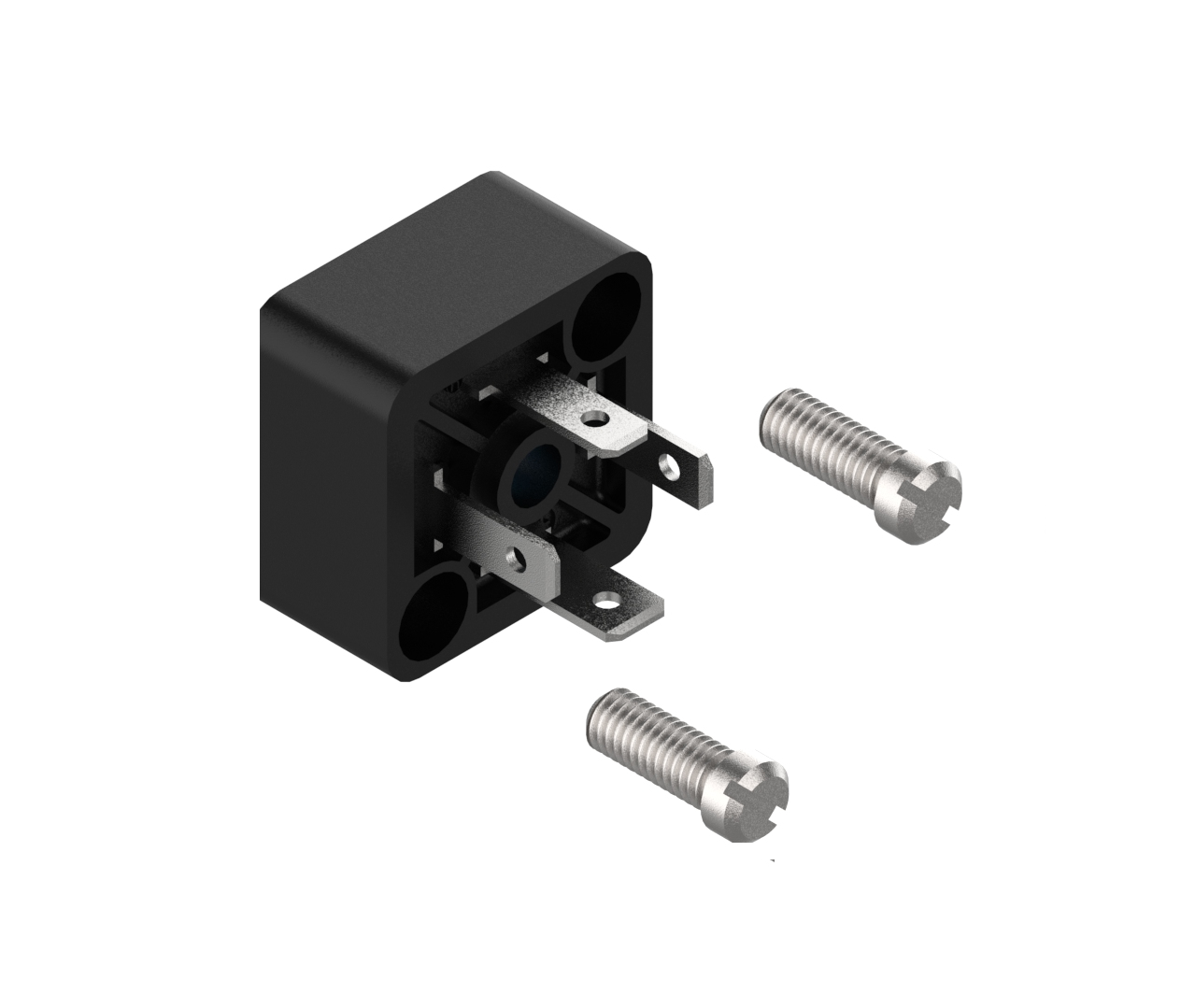

Industrial Standard: Male Receptacle Surface Mount, Form C, Contacts: 3+PE, solder type, 250 V | 6 A; cURus 1977

Technische Daten

Product Family	Valve Connectors
Side 1 Product Sub Family	GSSA Industrial Standard
Connector Type	Receptacle
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Number of Pins	3+PE
Coding, Side 1	C
Shielding Type	Unshielded
Attachment Type	2 screws M 3 x 8
Voltage Rating	250 V
Rated Voltage (UL)	250 V
Rated Voltage (CSA)	300 V AC/DC
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Current Rating	6 A
Rated Current (UL)*	6 A
Rated Current (CSA)*	6 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Solder
Cross Section	0.08 - 0.75 mm²
Ambient Temperature (Operation)*	-40 °C - +125 °C
Operating Temperature (UL)	max. + 65 °C
Operating Temperature (CSA)	max. + 65 °C
Protection Degree / IP Rating**	IP65
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Housing Color	black

Fastening torque (mounting screw)	(50-60) Ncm
Mount Type	M3 (2x)
Accessories to Order Separately	(NBR) flat gasket GSSA 300-5, Part Number. 730233002; (EPDM) flat gasket GSSNA 300-6,Part Number. 730312003

RoHS Compliant	yes

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	Do not connect or disconnect under load.

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	Do not connect or disconnect under load.
